I n modern industrial glass manufacturing, photovoltaic solar cover-glass production, and high-end foundry applications, raw quartz sand feed must satisfy exceptionally rigorous chemical and physical purity thresholds. High-spec glassmakers mandate a minimum silicon dioxide (SiO₂) purity of 99.5%, paired with strict upper limits on iron oxide (Fe₂O₃) impurities—frequently requiring iron levels below 0.02% (200 ppm) to prevent unwanted optical tinting and ensure maximum light transmittance.
Raw silica deposits extracted from inland pits or sandstone quarries rarely meet these stringent chemical specifications directly out of the pit. Quartz grains are almost universally encased in tenacious surface coatings consisting of hydrated iron oxides, heavy clay films, limonite staining, and refractory slimes. Conventional washing plants that rely exclusively on log washers, simple screw classifiers, or standard vibrating screens are fundamentally incapable of removing these chemically bonded surface contaminants, as gentle agitation merely washes away free-floating silt without stripping the quartz grain surface itself.

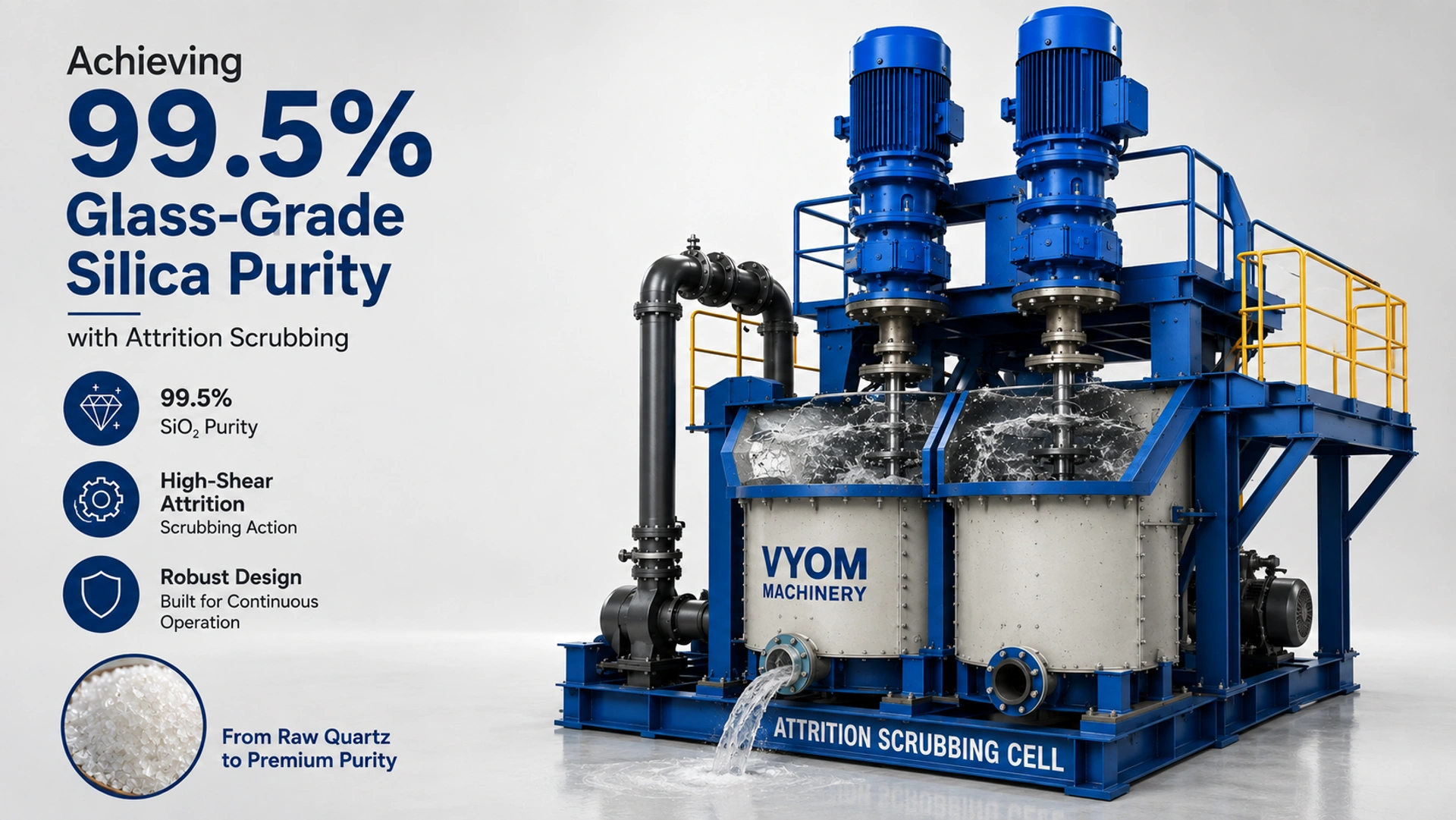

To overcome this barrier, High-Shear Attrition Scrubbing has emerged as the definitive mechanical beneficiation stage. An attrition scrubber operates by introducing dense silica-water slurry into dual-rotor cells equipped with counter-rotating pitch impellers. By conditioning the slurry to a precise high-density solids concentration of 70% to 75% by weight, the spatial clearance between individual sand particles is reduced to a microscopic minimum. Driven by high-efficiency motors, the inter-particle shear forces and violent grain-on-grain collisions generate intense friction across every particle surface.
This immense kinetic energy effectively shears off surface iron stains, clay envelopes, and friable mineral coatings without shattering or altering the natural grain size distribution of the durable quartz crystals. The detached ultrafine iron oxide particles and liberated clay slimes remain suspended in the liquid phase, where they can be effortlessly separated from the clean silica sand in downstream hydrocyclone washing and hydraulic classification stages.
Furthermore, optimizing the residence time inside the attrition scrubbing unit is crucial for achieving peak beneficiation performance. Operating with multiple scrubbing cells in series ensures a uniform slurry retention time of 3 to 5 minutes, eliminating short-circuiting and guaranteeing that 100% of the feed receives uniform surface scrubbing. Chemical reagents such as acid dispersants or pH modifiers may also be introduced directly into the scrubbing chamber to accelerate the dissolution of stubborn iron compounds when processing heavily stained deposits.
Following the attrition scrubbing stage, the scrubbed slurry is diluted and fed directly into multi-stage hydrocyclones and spiral gravity separators to remove liberated heavy minerals such as ilmenite, rutile, and tourmaline. The final dewatered sand product achieves pristine white color, exceptionally low iron content, and a sharp grain size distribution that consistently satisfies the demanding quality standards of container glass, container crystal, and solar photovoltaic module glass manufacturers.
Integrating Vyom High-Shear Attrition Scrubbers into existing sand washing circuits allows mine operators to upgrade low-value building sand feeds into premium, high-margin industrial silica products. By combining robust mechanical design, abrasion-resistant rubber linings, and optimized rotor geometry, Vyom scrubbing systems deliver maximum iron reduction with minimal operational power consumption and zero grain degradation.
